Architectural/Commercial Products

Fabral is the premier supplier of metal roofing and wall panels for architectural, educational, commercial, industrial and agricultural applications.

Filter by Product Type:

R-Panel

Produced at our Forth Worth, Texas facility, these 26 Gauge steel panels offer a great solution for light commercial and self-storage applications.

Substrate Offering:

26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Mitered Corners Wall & Roof Variations

Minimum pitch recommended 1:12 (PBR) and 2.5:12 (PBU)

Hail Resistance: UL2218, Class 4

Fire Resistance: UL790, Class A

Maximum Panel Length: Custom cut to lengths up to 40’

Minimum Panel Length: 4′

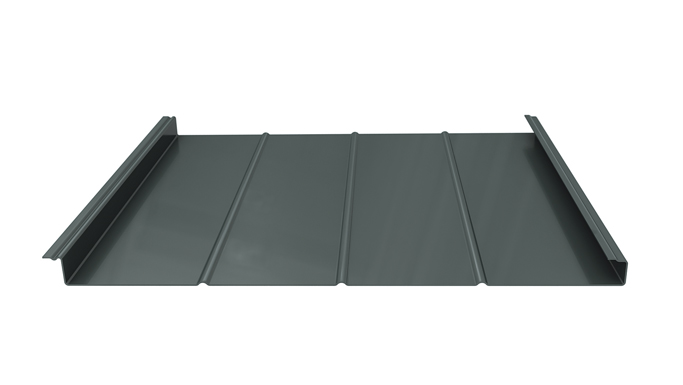

LP-15 Panel

This interior wall liner panel is an easy to use wall and roof panel for field assembled projects requiring insulation

Panel Options Available: Panel Variation LP-25 (2 1/2″ deep liner panel) is available

Substrate Offering:

Consult Fabral for Availability

Panel Features:

Factory Applied Sealant

Customizations Available:

Perforation Stiffening Beads

Panel Width: 24"

Maximum Panel Length: 45′

Minimum Panel Length: 6′

1/2″ Corrugated

This is an economical and versatile wall and roof panel with curving capabilities

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel 24 Gauge Steel 26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Curving Options Mitered Corners Wall & Roof Variations

Maximum Panel Length: 45′

Minimum Panel Length: 6′

7/8″ Corrugated

Fabral Corrugated panels are classically designed exposed fastener panels with multiple coverage and spacing options to choose from. With exceptional durability and unlimited color options, any one of Fabral’s corrugated panels would be the perfect choice for function and creativity. The construction of corrugated panels allows them to follow every curve of your design where needed when installed vertically. And it’s suitable for use on both wall and roof applications. With corrugated panels your vision is limitless

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel 24 Gauge Steel 26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Curving Options Mitered Corners Wall & Roof Variations

Maximum Panel Length: 45′

Minimum Panel Length: 6′

Mighti-Rib ®

This traditional panel design is a commercial and industrial roof, wall or fascia. It provides durability for unique demands of structures

Panel Options Available: Panel Variations R-Panel and W-Panel Are Available

Substrate Offering:

24 Gauge Steel 26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Heavier Gauges Mitered Corners Perforation

Minimum Roof Slope: 1:12

Hail Resistance: UL2218, Class 4

Fire Resistance: UL790, Class A

Maximum Panel Length: 45′

Minimum Panel Length: 6′

Positive Gravity Load Table (Steel)

Ga.	Spans	3’-0”	4’-0”	5’-0”	6’-0”	7’-0”	8’-0”	9’-0”
26	1	112	63	40	28	21	NR	NR
26	2	155	87	56	39	29	22	NR
26	3	194	109	70	49	36	27	22
24	1	123	69	44	31	23	NR	NR
24	2	133	75	48	33	24	NR	NR
24	3	167	94	60	42	31	23	NR
22	1	164	92	59	41	30	23	NR
22	2	168	95	61	42	31	24	NR
22	3	210	118	76	53	39	40	23

Ultra Rib ®

With the strength and integrity of metal, this durable 1 ½” high panel is suited for commercial and industrial applications

Substrate Offering:

.032″ Aluminum 22 Gauge Steel 24 Gauge Steel 26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Mitered Corners Wall & Roof Variations

Maximum Panel Length: 40′

Minimum Panel Length: 6′

U-Panel

For industrial designs, this roof and wall panel is a durable and environmentally conscious option

Panel Options Available: Panel Variation PBU Panel with Purlin Bearing Leg is Available

Substrate Offering:

26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Mitered Corners Perforated Options Reverse Run Wall & Roof Variations

6″ On Center Rib Spacing

Maximum Panel Length: 45′

Minimum Panel Length: 4′

PBU Panel

For light commercial structures and modular buildings, this economical commercial and industrial roof and wall panel is ideal

Panel Options Available: Purlin Bearing Leg

Substrate Offering:

26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Mitered Corners Wall & Roof Variations

6″ On Center Rib Spacing

Maximum Panel Length: 45′

Minimum Panel Length: 4′

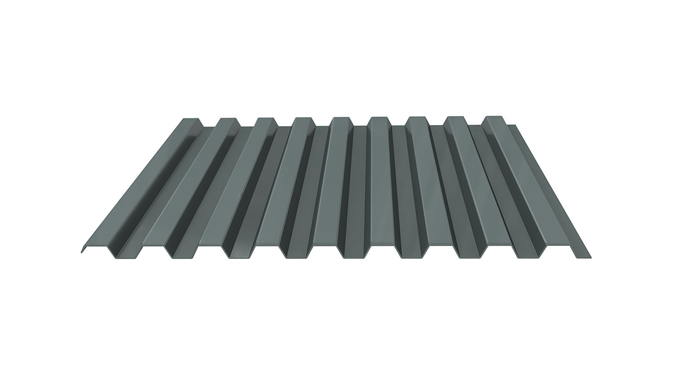

4” Rib ®

Serving as an industry standard, these heavy-duty panels are primed for intense industrial and lagging applications

Panel Options Available: 8″ Rib is Available

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Mitered Corners Wall & Roof Variations

Maximum Panel Length: 45′

Minimum Panel Length: 6′

Complete Panel Width Offering Includes:

Gauge	Panel Width	Panel Coverage
22 ga steel	35.563″	32″
20 ga steel	35.563″	32″
18 ga steel	35.563″	32″
Aluminum unpainted	45.625″	44″
Aluminum painted	38.50″	36″

4” Rib Gravity Load Table(Steel)

Ga.	Spans	6’-0”	7’-0”	8’-0”	9’-0”	10’-0”	11’-0”	12’-0”
26	1 & 2	46	34	26	21	NR	NR	NR
26	3	58	43	33	26	NR	NR	NR
22	1 & 2	62	46	34	28	22	NR	NR
22	3	78	57	44	35	28	25	21
20	1 & 2	77	57	43	34	28	23	NR
20	3	96	71	54	43	35	29	24
18	1 & 2	101	75	57	45	36	30	25
18	3	126	93	71	56	45	38	32

4” Rib Positive Wind Load Table (Alum.)

Thk.	Spans	6’-0”	7’-0”	8’-0”	9’-0”	10’-0”	11’-0”	12’-0”
.032”	1	65	48	37	29	23	NR	NR
.032”	2	56	56	31	25	20	NR	NR
.032”	3	70	70	39	31	25	NR	NR
.040”	1	81	81	45	36	29	24	NR
.040”	2	77	77	43	34	28	23	NR
.040”	3	197	97	54	43	35	29	24
.050”	1	100	100	56	45	36	30	25
.050”	2	103	103	58	46	37	31	26
.050”	3	129	129	73	57	47	38	32

Deep Rib II

This 2” panel design with a flat top rib for bold design applications can be used in vertical or horizontal applications with mitered corners available

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Mitered Corners Wall & Roof Variations

Panel Width: Maximum - 30"

Minimum Roof Slope: 1:12

Maximum Panel Length: 45′

Minimum Panel Length: 6′

Deep Rib IV

The bold 4” panel creates a dynamic design appeal. With creative versatility and protective platforms, the panel can be custom curved

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Curving Options Inverted Panel Option Mitered Corners Perforation

Maximum Panel Length: 45′

Minimum Panel Length: 6′

Snow Retention

The right snow guard patterns are key to your building’s safety, and your installation demands dependability you can count on. Fabral® offers a complete line of snow retention systems plus custom snow guard spacing and pattern recommendations. Review our offering or click here to submit a snow retention layout request

Standing Seam Panel Systems

Clamp-on snow guards provide options for Standing Seam roof systems. The AP series is ideal for Fabral® Stand ‘N Seam® , PowerSeam™ , Thin Seam and Slim Seam panels.
Snow Rail snow retention systems offer additional non-penetrating options for Standing Seam roof systems.

Exposed Fastener Panel Systems

Functional for Exposed Fastener roof systems, these surface mount snow guards are the right choice when you want to keep the cost down and design simple
