Architectural/Commercial Products

Fabral is the premier supplier of metal roofing and wall panels for architectural, educational, commercial, industrial and agricultural applications.

Filter by Product Type:

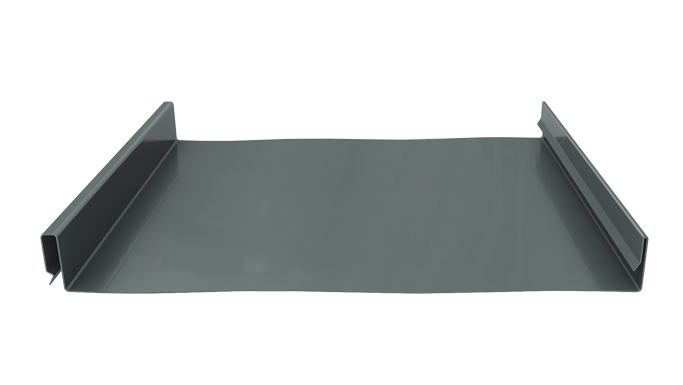

Thin Seam

A snap-together panel for easy installation with no mechanical seaming tool required. Ideal for installation over solid substrate and open framing.

Substrate Offering:

.032″ Aluminum .040″ Aluminum 22 Gauge Steel 24 Gauge Steel Copper

Panel Features:

Factory Applied Sealant Unlimited Thermal Movement

Customizations Available:

Batten Seam Lines Tapering Options

Maximum Panel Length: 47′

Minimum Panel Length: 6′

Test Data

Wind Uplift	UL580	Class 90 #303, 359, 359A, 343, 417
	ASTM E1592	Results Vary Depending on Gauge and Panel Thicknessa
Air infiltration	ASTM E283	.009 @ 6.24 psf
Water penetration	ASTM E331	no water @ 15 psf

Slim Seam ®

Economical high performance standing seam peak system. Panel is ideal for installing over solid substrate and open framing.

SLIM SEAM IMPROVEMENTS 2018: Slim Seam Florida Approval

Substrate Offering:

.032″ Aluminum .040″ Aluminum 22 Gauge Steel 24 Gauge Steel Copper

Panel Features:

Factory Applied Sealant Unlimited Thermal Movement

Customizations Available:

Tapering Options

Maximum Panel Length: 47′

Minimum Panel Length: 6′

Wind uplift	UL90	#274, 274A, 369
	ASTM E1592	24 ga. allowable load of 48.48 psf @ 2.5’
Air infiltration	ASTM E283	09 @ 1.57 psf
	ASTM E1680	0.00 @ 20 psf
Water penetration	ASTM E331	no water @ 25 psf
	ASTM E1646	no water @ 12 psf

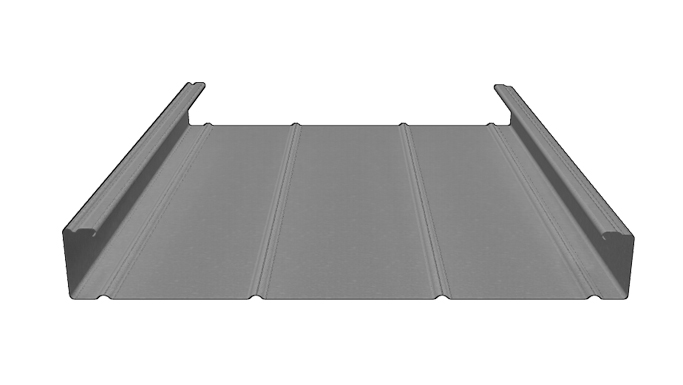

2 1/2” SSR

For a classic panel with narrow batten seams, this is available in a variety of gauges and has taper options

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel 24 Gauge Steel

Panel Features:

Factory Applied Sealant Unlimited Thermal Movement

Customizations Available:

Tapering Options

Maximum Panel Length: 51′

Minimum Panel Length: 6′

Wind uplift	UL90	#190, 190B
Air infiltration	ASTM E283	No air penetraion @ 20 psf
	ASTM E1680	0.019 cfm/ft2 @ 20 psf
Water penetration	ASTM E331	No Water @ 25 psf
	ASTM E1546	No water @ 20 psf

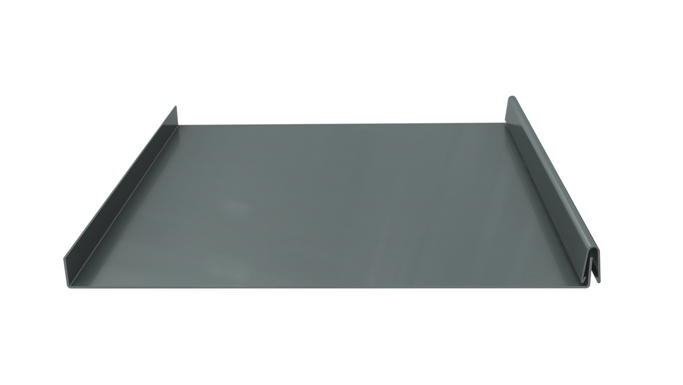

Snap on Seam

This two-component design is ideal for roof applications requiring curved panels. It is durable and allows for creativity in design

Substrate Offering:

.032″ Aluminum .040″ Aluminum 22 Gauge Steel 24 Gauge Steel

Panel Features:

Unlimited Thermal Movement

Customizations Available:

Factory Curving Options Field Curving Options High Seam Option Tapering Options

Solid Substrate Installation Only

Maximum Panel Length: 47′

Minimum Panel Length: 6′

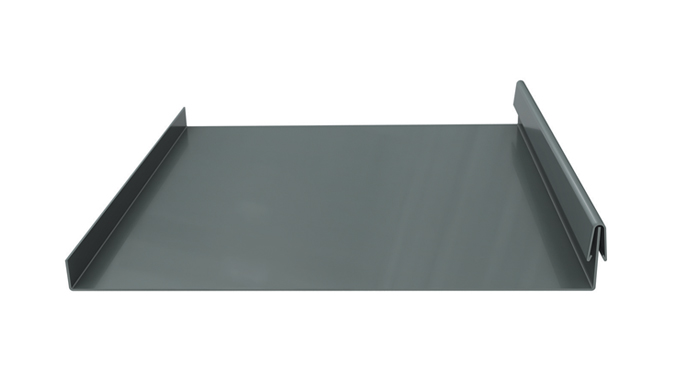

Snap on Seam – High Profile

The snap on seam design allows for easy installation or removal of panels. This is especially helpful in times of repairs

Panel Options Available: Solid Substrate Installation Only

Substrate Offering:

.032″ Aluminum .040″ Aluminum 22 Gauge Steel 24 Gauge Steel

Panel Features:

Factory Applied Sealant Unlimited Thermal Movement

Customizations Available:

Tapering Options

Solid Substrate Installation Only

Maximum Panel Length: 47′

Minimum Panel Length: 6′

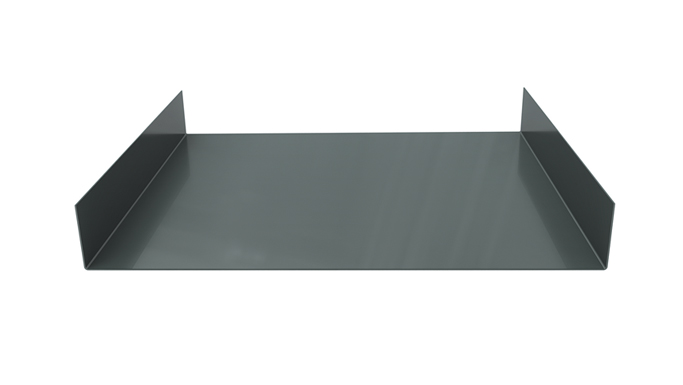

Snap on Batten

This snap-on seam panel is wider than a standard panel and is beneficial for a bolder design effect

Substrate Offering:

.032″ Aluminum .040″ Aluminum 22 Gauge Steel 24 Gauge Steel

Panel Features:

Factory Applied Sealant Unlimited Thermal Movement

Customizations Available:

Tapering Options

Solid Substrate Installation Only

Maximum Panel Length: 47′

Minimum Panel Length: 6′

IP Snap 3

Trapezoidal panel design is mechanically snapped and works well for low-slope industrial applications and high performance, pre-engineered metal buildings

Substrate Offering:

22 Gauge Steel 24 Gauge Steel

Panel Features:

Factory Applied Sealant Snap-Fit Panel

Maximum Panel Length: 47′

Minimum Panel Length: 6′

Wind uplift	UL90	#93, 210A
	ASTM E1592	Results vary depending on Gauge and Thickness
Air infiltration	ASTM E283	.006 @ 20 psf
	ASTM E1680	0.00 @ 20 psf
Water penetration	ASTM E331	No water @ 20 psf
Water penetration	ASTM E1646	No water @ 20 psf
Minimum Roof Slope	1/2: 12
Available Widths	24”
Standard Lengths	6’ to 47’

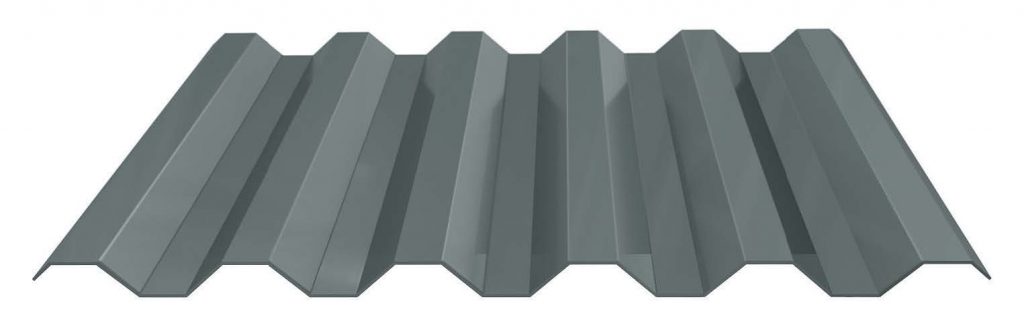

Hefti-Rib®

Superior strength-to-weight ratio and spanning capabilities set this panel apart. It adds texture and strength to designs and can act as a canvas on the exterior.

Panel Options Available: Panel Variations HR-288 and Reverse Run Hefti-Rib I are Available

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel 24 Gauge Steel 26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Curving Options Mitered Corners Wall & Roof Variations

Maximum Panel Length: 45′

Minimum Panel Length: 6′

Related Documents:
Hefti-Rib Brief Product Specification Sheet

Silhouette HCF Series ™

With a range of profiles and configurations, this horizontal concealed fastener system meets design requirements for a variety of applications

Panel Options Available: Multiple Panel Profiles Designs with both 12″ and 16″ options

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel 24 Gauge Steel

Panel Features:

Factory Applied Sealant

Customizations Available:

Mitered Corners

Maximum Panel Length: 20′

Minimum Panel Length: 2′

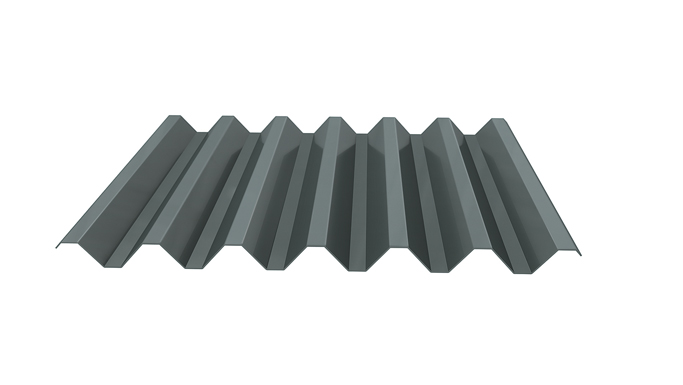

V-Beam

The strength and spanning capabilities make this panel an excellent choice for dramatic roof and wall applications

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel 24 Gauge Steel 26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Curving Options Mitered Corners Wall & Roof Variations

Maximum Panel Length: 45′

Minimum Panel Length: 6′

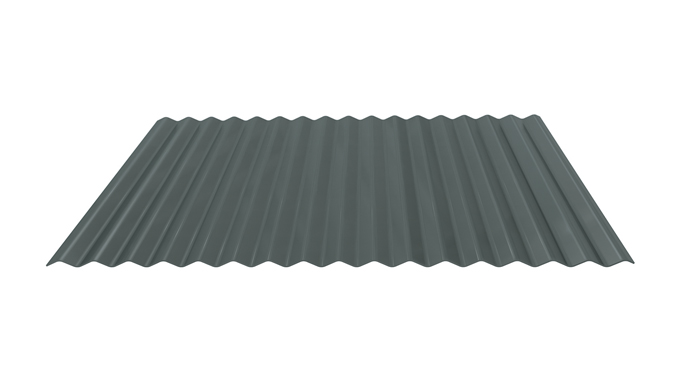

1/2″ Corrugated

This is an economical and versatile wall and roof panel with curving capabilities

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel 24 Gauge Steel 26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Curving Options Mitered Corners Wall & Roof Variations

Maximum Panel Length: 45′

Minimum Panel Length: 6′

7/8″ Corrugated

Fabral Corrugated panels are classically designed exposed fastener panels with multiple coverage and spacing options to choose from. With exceptional durability and unlimited color options, any one of Fabral’s corrugated panels would be the perfect choice for function and creativity. The construction of corrugated panels allows them to follow every curve of your design where needed when installed vertically. And it’s suitable for use on both wall and roof applications. With corrugated panels your vision is limitless

Substrate Offering:

.032″ Aluminum .040″ Aluminum .050″ Aluminum 18 Gauge Steel 20 Gauge Steel 22 Gauge Steel 24 Gauge Steel 26 Gauge Steel

Panel Features:

Vertical & Horizontal Applications

Customizations Available:

Curving Options Mitered Corners Wall & Roof Variations

Maximum Panel Length: 45′

Minimum Panel Length: 6′
